Spiral Wound Gasket

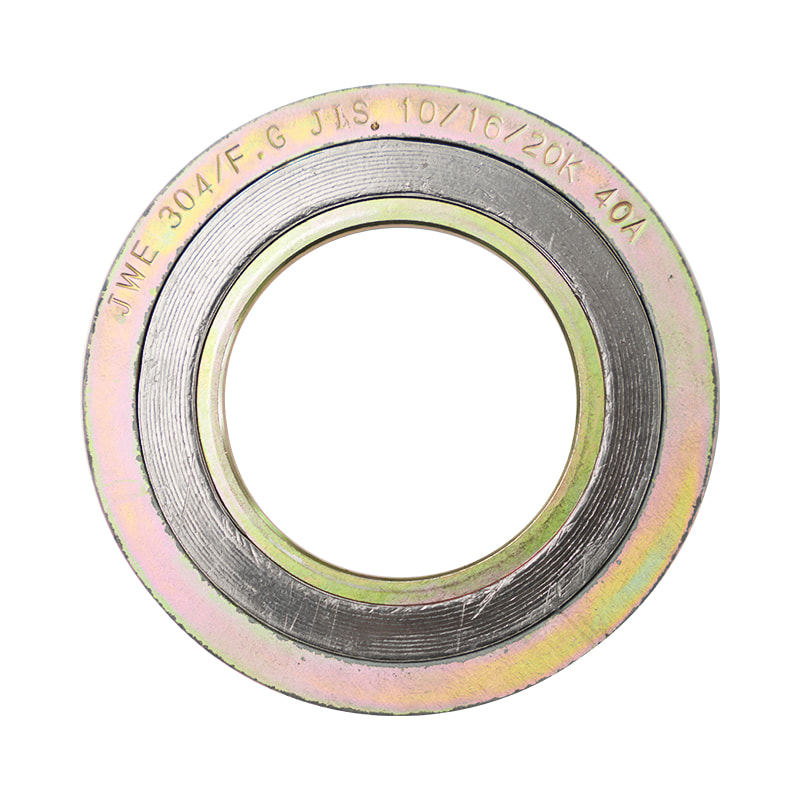

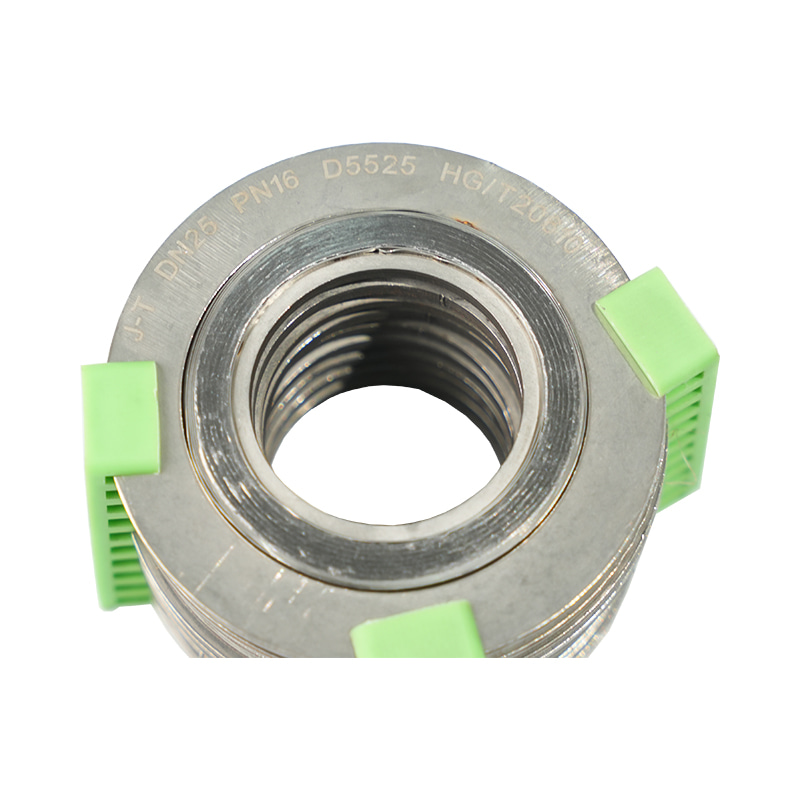

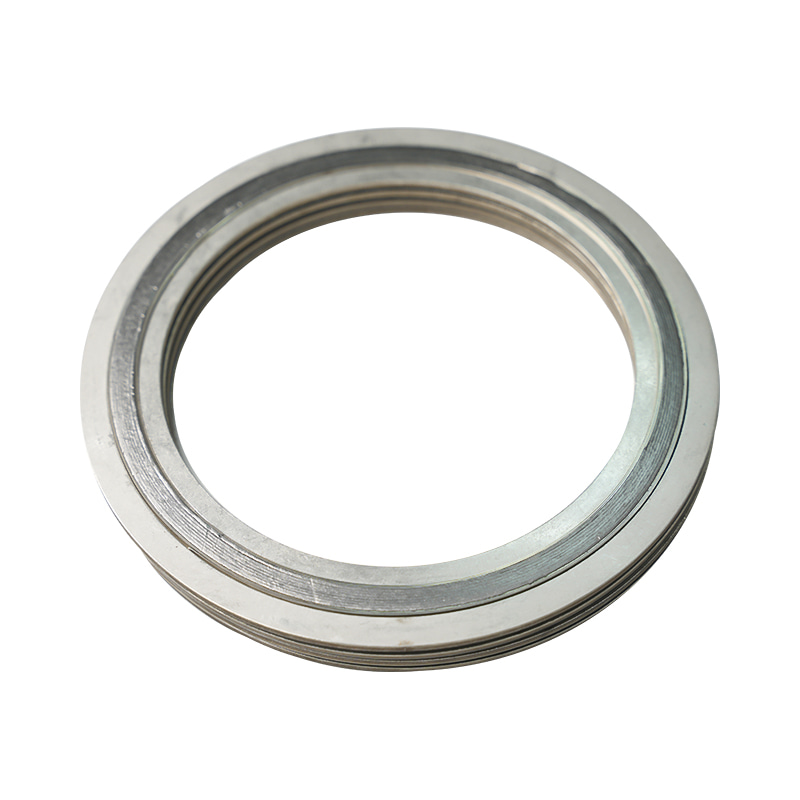

The metal bell-wound gasket is alternately wound with V-shaped metal belts and non-metallic strip fillers. The metal belt ensures the resilience of the gasket. Non-metallic strip packing ensures the airtightness of the gasket. Due to the combination of the above materials, gold-black winding mats are usually used under working conditions with severe temperature and pressure fluctuations. According to the requirements of the use situation, the inner diameter direction of the winding part is provided with inner and outer metal rings.

CONTACT US Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket
  • Spiral Wound Gasket

Specifications

Gasket tightening stress range

Installing metal spiral wound gaskets according to the recommended gasket tightening stress in the table on the right can effectively ensure system sealing.

characteristic

Metal energy-wrapped pads are used in a wide range of robust stresses.
Based on the materials used, the metal relay gasket can effectively ensure the sealing of the system within the system pressure of 400bar and the system temperature range of -196℃-1000℃. Sturdy and durable, easy to install.
The outer ring is easy to assemble and can prevent the gasket from being extruded and deformed.
Through the combination of metal winding tapes and tape fillers of different materials, winding mats suitable for different working conditions can be made according to customer needs.
Small wires that are easy to remove and will not be damaged during maintenance.

Flange sealing surface finish

Flange sealing flange surface, the processing smoothness requirement is between 3.2-6.3um.

Fill material

With inner or outer ring

With inner and outer rings

Gasket tightening stress(20℃)

Gasket tightening stress(20℃)

Min(N/mrn²)

Optimum(N/mm²)

Max(N/mm²)

Min(N/mm²)

Optimum(N/mm²)

Max(N/mm²)

Graphite

50

95

180

50

120

400

PTEE

50

80

130

50

110

250

Hi-Temp

50

95

130

50

120

250

Standard wrap mat appearance



RF1 type

It is only made of a metal shaft wound around a belt and shaped packing, without inner and outer rings, and is suitable for sample tank flanges.

SG type

Except for the outer ring with centering reinforcement, the rest of the structure is the same as the RF1 type, suitable for concave and convex flanges. The centering reinforcement ring not only ensures fast and accurate centering of the gasket during installation, but also prevents extrusion damage when the gasket is installed and tightened.

RF-IR type

The basic structure is the same as the RF1 type. It has an inner reinforcing ring and is suitable for concave and convex flanges. The installation of the inner reinforcing ring can prevent the gasket winding area from being eroded or bent by the medium.

SG-IR type

Except for the inner reinforcing ring, its structure is the same as the SG type and is suitable for raised flanges.

SG-RTJ type

The basic structure is the same as SG type, and the dimensions are manufactured according to the requirements of the connecting surface flange. ​

HX-R type

The basic structure is the same as the SG type, except that the centering reinforcement ring is made of metal strips. Narrow size, suitable for centering heat exchanger gaskets.

HX-RIR type

Except for the inner reinforcing ring, the rest of the structure is the same as the HX-R type. Suitable for sealing connections of large heat exchangers and concave and convex flanges.



Performance and features:

1. Able to withstand high temperature, high pressure and adapt to ultra-low temperature or vacuum conditions. By changing the material combination of the gasket, the problem of chemical corrosion of the gasket by various media can be solved.

2. Strong stress compensation ability. In working positions with frequent temperature and pressure fluctuations, the sealing performance is stable and reliable.

3. Excellent sealing performance.

4. The surface accuracy of the flange sealing surface in contact with the gasket is not high.

5. Easy to install and low gasket preload pressure.

6. Gasket coefficient: m=2.5-4

7. Minimum preload specific pressure: y=68Mpa

Metal wound gasket with special sealing surface with GT area

When the metal-wound graphite and packing tape may react chemically with the system medium or contaminate the medium, you can consider choosing GT zone wound pads to solve the problem. The inner and outer areas of the winding part of the JIINTAI GT zone winding pad are made of high-temperature resistant Hi-Temp ceramic filler tape and metal winding. The middle area is made of graphite or PTEE filler tape (depending on the media conditions) and metal tape wound to improve the air tightness of the gasket. This special structure makes the GT zone metal winding pad have the following characteristics:

Can ensure sealing under high temperature conditions

Good sealing performance

Combined with the above advantages and the inherent characteristics of metal winding pads, GT zone metal shaft winding pads are suitable for a variety of working conditions and have a wide range of uses.



Special bead shape

Metal winding pads can be designed into a variety of shapes, such as oval, pear-shaped, with isolation strips, etc. Usually the isolation strips of metal winding pads are realized in the form of metal-coated strips.

WL type

The structure of the WL type metal winding pad is exactly the same as that of the RF1 type, except that a metal winding tape is installed on the outside for centering. Centering is achieved by tightening the metal winding tape on two opposite fastening bolts. For details, see the schematic diagram below.

MH type

The MH type metal maintenance pad has the same structure as the RF1 type, except that the shape is designed to be an oval shape suitable for the size of the manhole.

HE type

HE-type metal spiral wound gasket with isolation strip is usually used as a seal for heat exchangers or containers. Its basic structure is the same as RF1. The metal package isolation and thickness are usually smaller than the thickness of the spiral wound gasket.

The spacer strip and winding pad are connected by welding.


HE-SG type

Except for the outer ring, the structure of the HE-SG type metal spiral pad is exactly the same as that of the HE type.

TC/HH type

TC/HH type metal retaining gasket is specially designed for sealing maintenance holes and special flanges (pipe covers or hand hole covers, etc.), and can be square, rectangular, oval, diamond-shaped or pear-shaped, etc. In the order form for special shape gaskets, correct detailed dimensional drawings must be provided.


HE-SG-IR type

Except for the inner and outer reinforcing rings, the structure of the HE-SG-IR metal relay pad is exactly the same as the HE type.

Selection of filler tape materials

The table on the right can be used as a reference for the correct selection of filler tape. It must be emphasized that graphite materials may contaminate the medium or cannot withstand the erosion of chemical media. Only materials recommended in other tables will be selected, or GT zone metal winding pads will be selected.

Graphite

It has the advantages of better chemical resistance, not easy to age, good air tightness and suitable for high temperature working conditions. It is a commonly used sealing performance, but its applicable medium temperature exceeds the limit temperature that standard stone eggs can withstand.

APX2 Graphite

apx2 graphite has the characteristics of inhibiting mechanization and has the same sealing performance as graphite, but its applicable medium temperature exceeds the limit temperature that standard graphite can withstand.

PTFE

PTFE is a performance-enhancing synthetic material with the following properties:

Excellent chemical resistance

The max. temperature resistance can reach 260℃

Difficult to change

Good air tightness

Padding material

Proper temperature (℃)

Maximum use work pressure

bar

Air tightness

Use medium

Min

Max

Graphite

-200

450

400

Good

Corrosive media

APXA Graphite

-200

500

400

Good

Corrosive media

PTFE

-200

260

100

Good

Corrosive media

Hi-Temp

200

1000

5

Average

Gas

Hi-Temp+APX2

-200

800

100

Good

Gas

Hi-Temp material

HI-Tomp is a mica-based material suitable for high-temperature applications. It is usually used in combination with stone eggs in metal wrapping in the GT area.

download Google:

When ordering metal winding pads, please indicate the following parameters:

1. Types of metal can wrapping pads

2.Flange standard

3. Pipe diameter and pressure level

4. Material type - inner ring

-Metal wrapping tape

-Packing drive

-Outer ring

Example

JINTAI 2204

ASME B16.20

2''150lbs

SS316

SS316

Graphite

Carbon steel
